LIGHTSTAR KBF-23

Payment

L/C(sight) , P@yGOS(PayPal) , T/T
MOQ

5 ea
Country of sale

World Wide
Catalogue Video Clip
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

LIGHTSTAR CO.,LTD

Model KBF-23
origin

Republic of Korea
Size(Capacity)

139X57X52(mm)
Weight

105g
Function

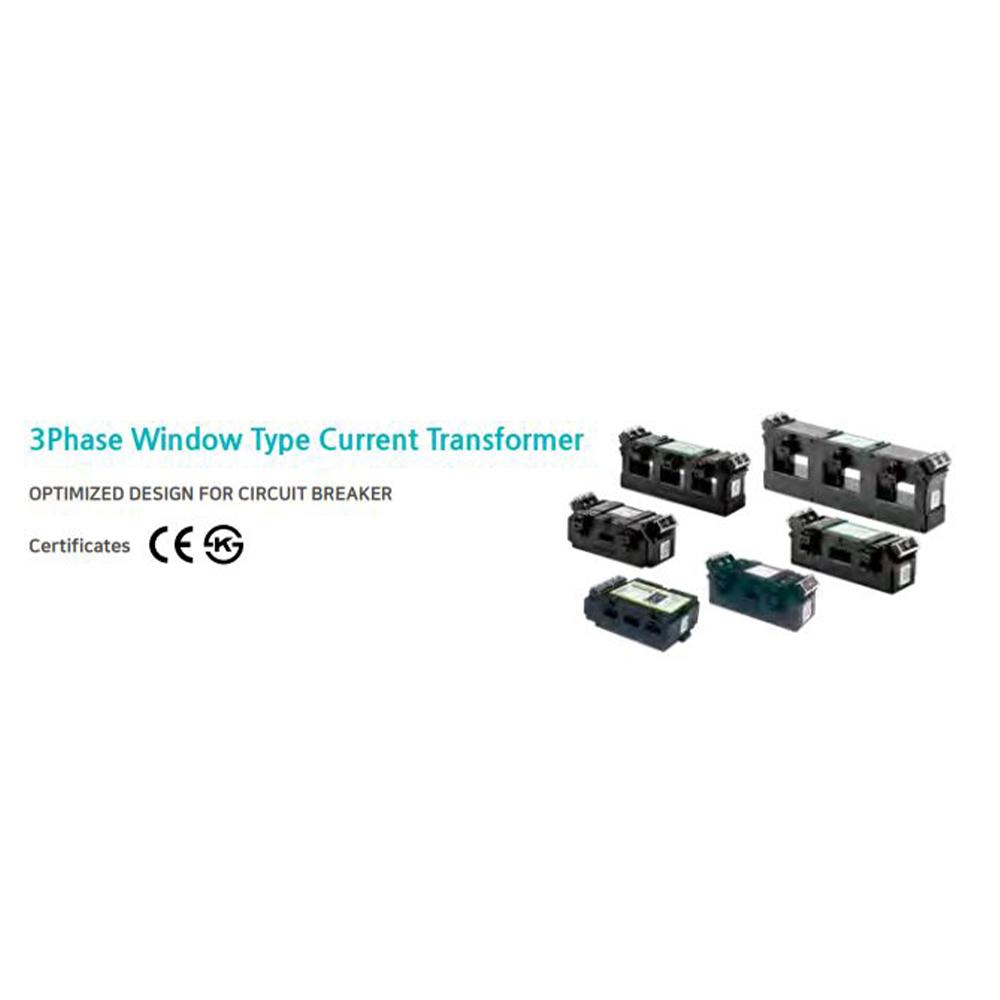

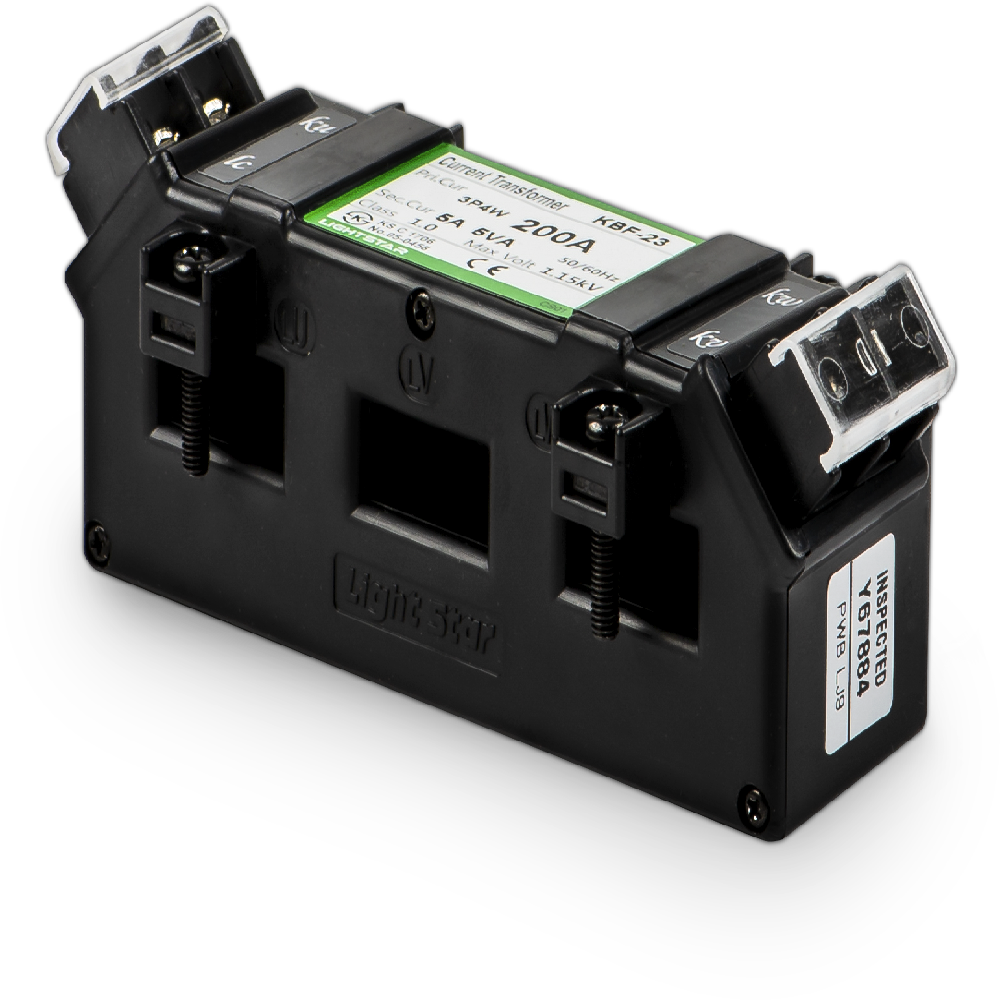

Window Type Current Transofrmer

PRODUCT DESCRIPTION

1) Optimized design with MCCB size Save the cost of labor and material

2) To measure current, it is a product that converts large current into small current. More than 20,000 units are being sold annually in Vietnam and Japan.

It is designed in three phases rather than single phase-oriented competitors, so installation time is short, and the size is optimized, so space is easy to use.

3) How to order
Example) KBF-23 80/5A, 2.5VA, 3.0 class
Customized product can be produced by order.
These products are designed for standard circuit breakers

4) Specification
Secondary current 5A OR 1A
Overcurrent strength 40times
Maximum voltage 1.15kV
Withstand voltage 4.0 kV / 1 min
Frequency 50/60Hz

5) 3P3W, 3P4W Recommended CT per CB x-frame size(For Meter)
Torque limit for bus bar fixing bolt : M4 - 5~7 kgfㆍcm, M5 - 7~10kgfㆍcm (Excess torque may cause bending and distortion)
Please be aware that bus bar fixing bolt for current transformer can be energized .
Bolt insulation covers are recommended for safety.
