ITEM SPECIFICS

Brand

TEKON

Model TEKON950
origin

Republic of Korea
Size(Capacity)

240(L)×198(W)×109(H) mm
Function

Battery Quality Analyzer
Material

ABS
Color

Black
Weight

1.4kg

PRODUCT DESCRIPTION

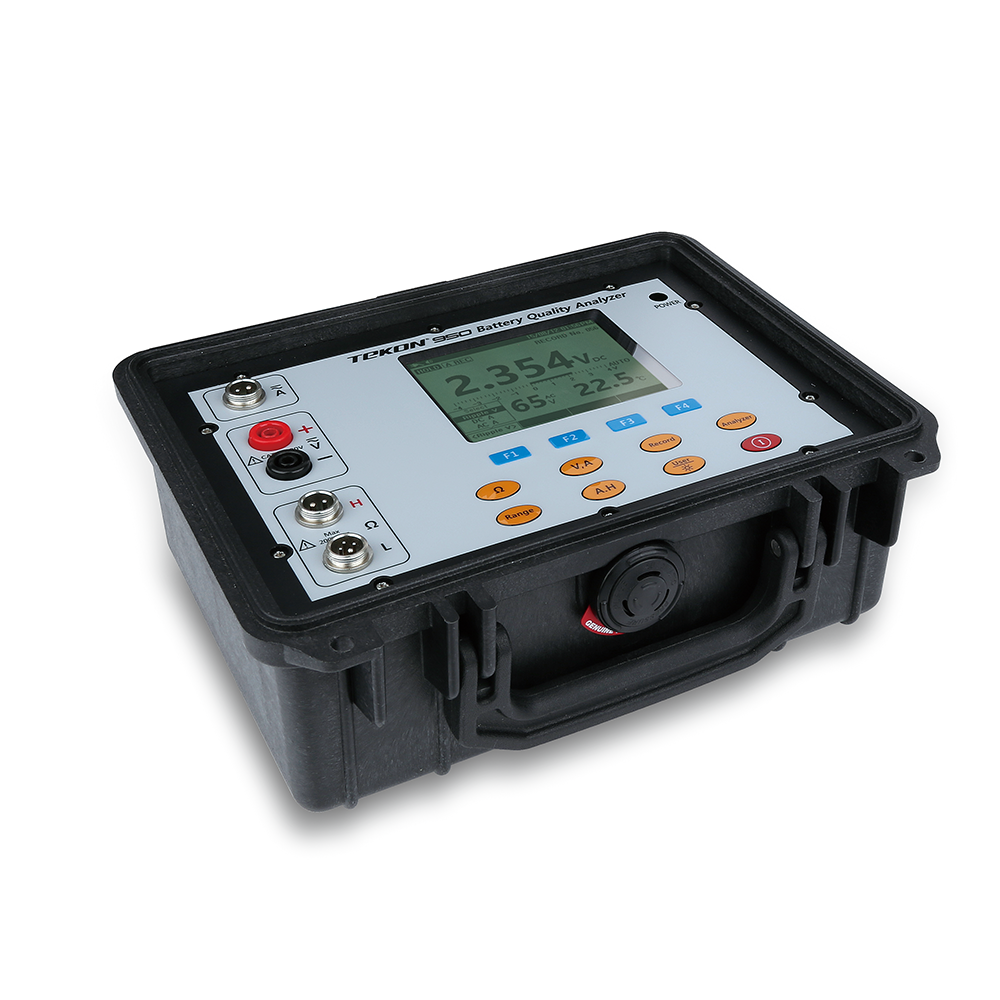

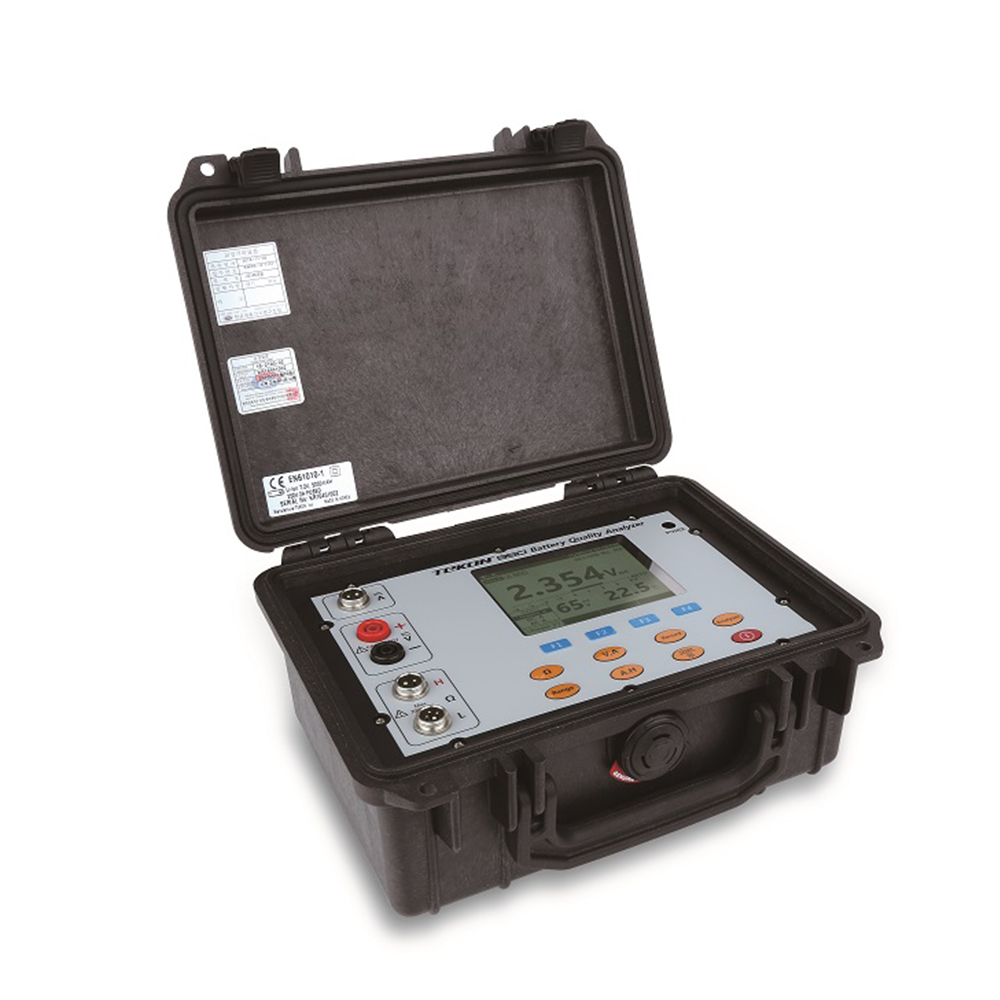

Battery Quality Analyzer
TEKON950

To prevent faults or quality issues in critical battery back-up applications caused by defects in stationary batteries, TEKON950 Battery Quality
Analyzer enables the user to diagnose and evaluate the performance and the degree of ageing by testing the conditions of individual batteries (400V max) in type of cell, module or pack.
TEKON950 can handle virtually all battery testing (e.g. aged status of battery under test and the condition of a power system) in systems that use high-voltage battery packs, such as ESS, EV, HEV and PV as well as UPS.

Features

• Measures internal resistance of 400V max of batteries
• Measures voltages at battery (DC500V)
• Measures voltage of UPS (AC500V)
• Measures ripple voltage, current and temperature
• Diagnoses ageing of battery and predicts its use life (to determine timing for replacement)
• Can conduct history management of battery using SD memory
• Auto Hold and Data Storage
• Prints out measurement data in reports
• Transmits measurement data to remote locations (e-mail, server) using Mobile App
• Removable wireless printer applied

Specifications

Product Name	Battery Quality Analyzer
Brand Name	TEKON

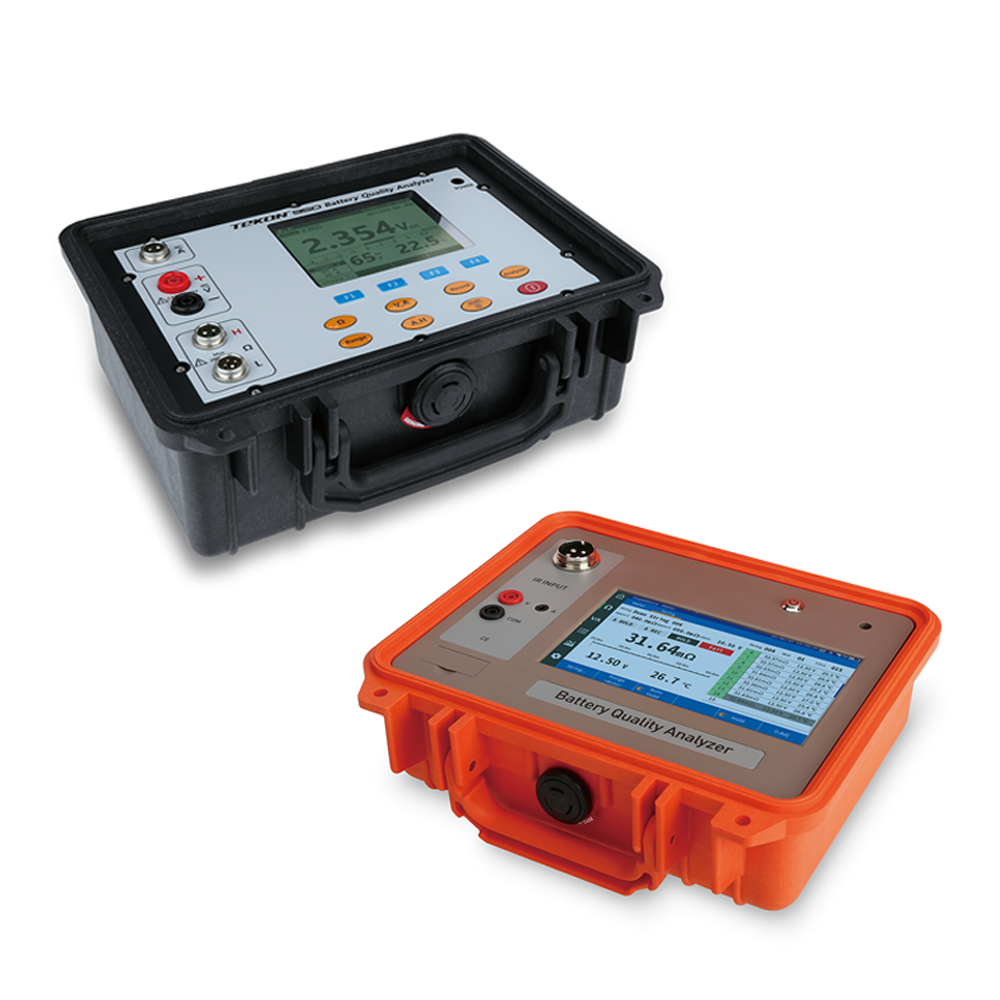

Model No.	TEKON950	TEKON970
Color	Black	Orange
Weight	1.4kg	3.0kg
Size	240(L)×198(W)×109(H) mm	270(L)×246(W)×124(H) mm
Origin	Republic of Korea
